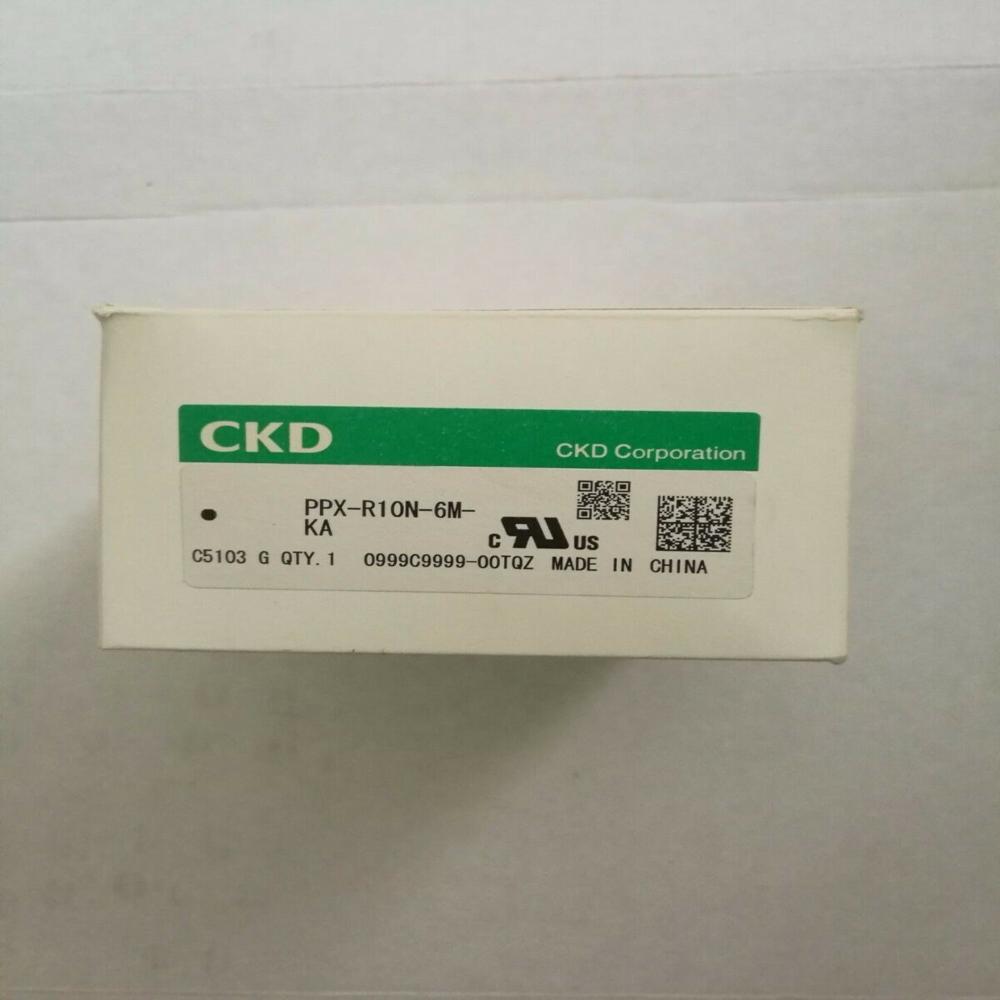

DIGITAL PRESSURE SW PPX-R10N-6M-KA CKD

Name: DIGITAL PRESSURE SW PPX-R10N-6M-KA CKD
Brand: VANSTECH MACHINES
Price: 3500.0 INR
Availability: InStock

Price 3500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DIGITAL PRESSURE SW PPX-R10N-6M-KA CKD Specification

Power
24 VDC (Operating voltage)

Structure
Digital Pressure Switch

Media
Air, Non-corrosive Gases

Material
Plastic Body, Electronic components

Air Consumption
None (Electronic device)

Pressure Range
-0.1 to 1.0 MPa (Typical for PPX series)

Protection
IP40

Connection Type
M5 Female (6mm tube compatible)

Output
2 switch outputs

Features
Mode selector, Compact design, High-visibility display

Response Time
1ms to 1000ms (adjustable)

Operating Temperature
0 to 50C

Mounting
Panel Mount / Direct Mount

Model
PPX-R10N-6M-KA

Display
Digital (with 2 set point display grid)

DIGITAL PRESSURE SW PPX-R10N-6M-KA CKD Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

About DIGITAL PRESSURE SW PPX-R10N-6M-KA CKD

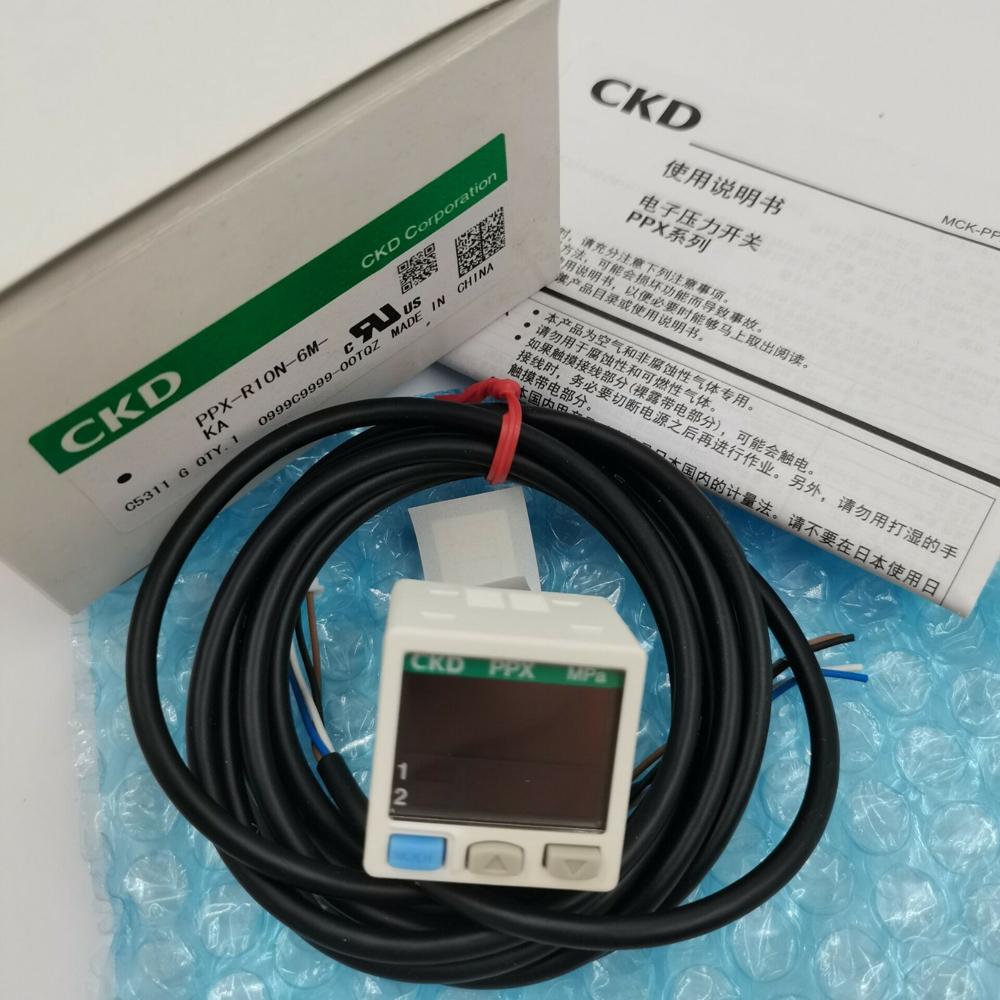

The CKD PPX-R10N-6M-KA is a digital pressure switch (pressure sensor) from the PPX Series, designed for monitoring compressed air pressure in industrial automation systems. It features a dual-display, 3-color LCD for simultaneous display of the current pressure and set pressure.

Model Code Breakdown

PPX Digital Pressure Sensor Series
R10 Pressure range: 0.100 to +1.000 MPa
N NPN transistor, 2 switching outputs (standard type)
6M R1/8 (PT 1/8) pressure port with M5 female thread
KA Unit change function (MPa, kPa, bar, psi, etc.) for export models

Key Specifications

Parameter	Specification
Manufacturer	CKD
Model	PPX-R10N-6M-KA
Product Type	Digital Pressure Switch / Pressure Sensor
Pressure Range	0.100 to +1.000 MPa
Output Type	2 NPN transistor outputs (open collector)
Supply Voltage	1224 VDC (10%)
Display	Dual 4-digit, 3-color LCD
Pressure Port	R1/8 (PT 1/8) + M5 female thread
Working Fluid	Air and non-corrosive gases
Repeatability	0.2% F.S.
Protection Rating	IP40
Operating Temperature	10C to +50C
Weight	Approximately 40 g

Advanced Digital Pressure Monitoring

Experience precise and fast pressure detection with the CKD PPX-R10N-6M-KA. The high-visibility digital display and adjustable response time provide enhanced control and flexibility, ensuring optimal process performance in automation systems. With its compact design and durable construction, it seamlessly integrates into different setups without consuming air, reducing operating costs.

Flexible Installation and Operation

Suitable for panel or direct mounting, the PPX-R10N-6M-KA accommodates various application requirements. The M5 female connection type, compatible with 6mm tubes, ensures hassle-free integration. Its mode selector allows users to swiftly switch between different operation modes, making this device suitable for diverse industrial air and non-corrosive gas applications.

FAQ's of DIGITAL PRESSURE SW PPX-R10N-6M-KA CKD:

Q: How do I install the DIGITAL PRESSURE SW PPX-R10N-6M-KA in my system?

A: The PPX-R10N-6M-KA can be either panel mounted or directly mounted to your equipment. Use the M5 female connection, compatible with 6mm tubing, to connect to your air or non-corrosive gas line. Ensure the device is powered with 24 VDC and mounted within temperatures of 0 to 50C for optimal performance.

Q: What types of media are compatible with this digital pressure switch?

A: This model is designed for use with air and non-corrosive gases only. Using other media may damage the electronic or plastic components and void warranty coverage.

Q: When should I use the adjustable response time feature?

A: Adjust the response time (1ms to 1000ms) depending on your application's speed and sensitivity needs. Use shorter response times for rapid detection in dynamic systems and longer times to avoid false triggering in applications with fluctuating pressure.

Q: Where can the PPX-R10N-6M-KA be mounted?

A: This switch is suitable for both panel mounting and direct equipment mounting, providing flexibility in various industrial setups. Ensure that mounting is done in locations protected from moisture and excessive dust, as the unit has an IP40 rating.

Q: What is the process for setting switch points on the display?

A: Setpoint values can be configured via the digital front panel. The display grid allows you to monitor and easily adjust two independent set points for precise pressure control. Detailed steps are provided in the user manual supplied with the device.

Q: How does the mode selector benefit the user?

A: The integrated mode selector allows you to change operation modes quickly, tailoring the device's functionality to specific process or maintenance needs, thereby enhancing overall process flexibility and efficiency.

Q: What are the key benefits of using this digital pressure switch?

A: The PPX-R10N-6M-KA offers high accuracy, fast response, zero air consumption, and easy-to-read digital display. Its compact, robust design and adaptable mounting options minimize installation effort and maintenance, making it ideal for a wide range of industrial automation applications.
