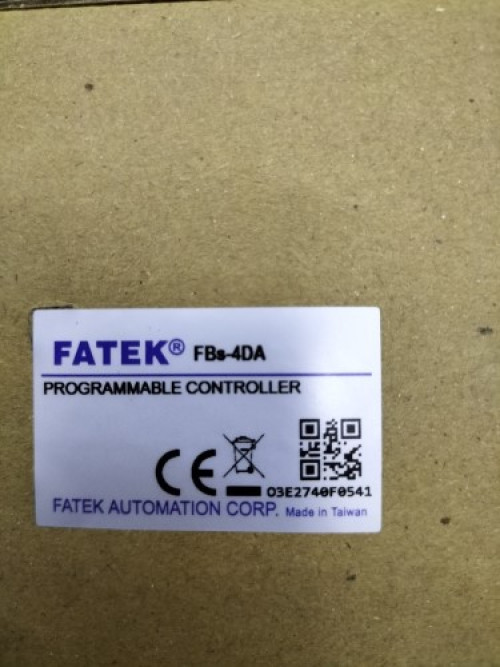

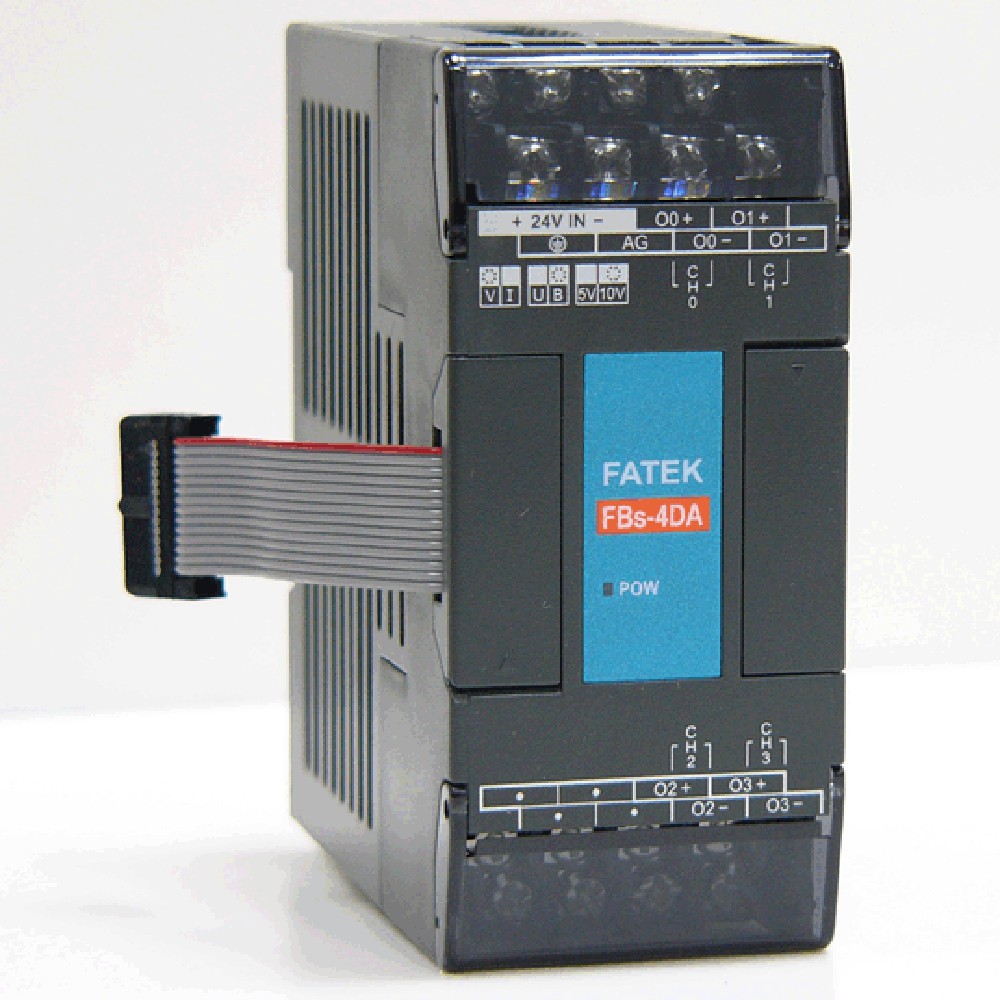

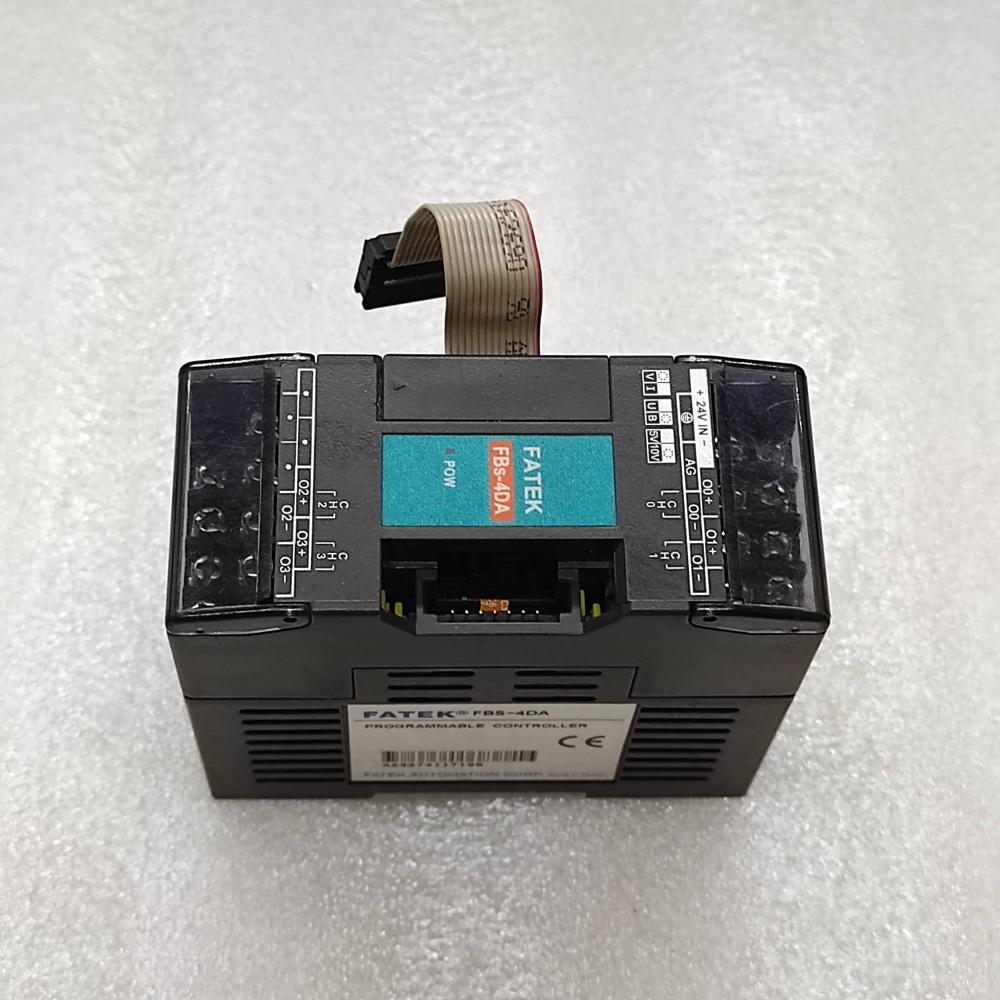

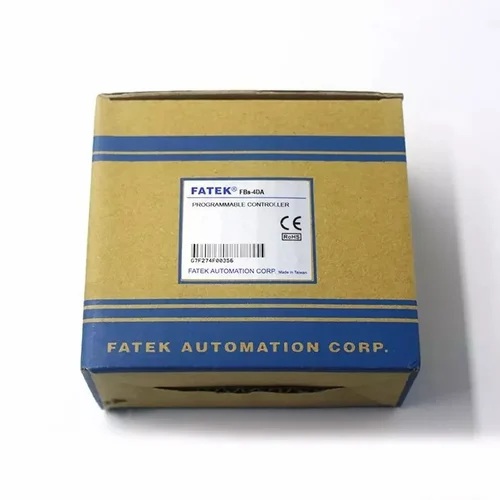

FATEK FBS-4DA 4-CHANNEL ANALOG OUTPUT MODULE

Send Inquiry

Request To Call Back

FATEK FBS-4DA 4-CHANNEL ANALOG OUTPUT MODULE

Name: FATEK FBS-4DA 4-CHANNEL ANALOG OUTPUT MODULE
Brand: VANSTECH MACHINES
Price: 11500.0 INR
Availability: InStock

Price 11500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

FATEK FBS-4DA 4-CHANNEL ANALOG OUTPUT MODULE Specification

Usage
Programmable Logic Controller (PLC) expansion for process automation

Display Type
None (status indicated by PLC or system diagnostics)

Response Time
Typical analog output response time <3ms

Features
CE certified, compact design, ensures stable analog output

Interface
DIN rail mounting and PLC module bus connection

Power Source
PLC main unit supply

Output
Analog voltage/current (4 channels)

Input
Commands from PLC main unit (digital)

Resolution
12-bit D/A resolution

Processor Speed
Controlled by PLC main processor

Components
PCB, connectors, voltage/current output circuits, module casing

Operating Temperature
0C to 60C

IP Rating
IP20 (typical for PLC modules)

Power Supply
Powered via PLC base unit

Charging Voltage
Not applicable (powered by PLC bus)

Product Type
Analog Output Module

Application
Industrial Automation, Machine Control, PLC Systems

Rated Voltage
24V DC (standard for I/O modules)

Supply Voltage
24V DC

Size
Standard FBS module size (approx. 90 x 90 x 40 mm)

Dimension (L*W*H)
Approx. 90 mm x 90 mm x 40 mm

Function
4-Channel Analog Output Module for PLC analog signal control and conversion

Color
Black

Weight
Approx. 160g

Thickness
Standard PLC module thickness

Current Rating
Output 0-20 mA / 4-20 mA (depending on configuration)

Capacity
4 analog outputs

Frequency
Not applicable (analog output module)

Connection Type
Terminal block connectors

Output Signal Types
0-10V DC, 0-5V DC, 0-20mA, 4-20mA programmable per channel

Storage Temperature
-20C to +70C

Module Series
FBS Series

Protection
Short circuit and overload protection on output channels

Isolation
Optical isolation between analog circuits and PLC bus

Mounting Type
DIN Rail Mount

Compatible PLC Models
Fatek FBS Series base units

Number of Output Channels
4 independent analog outputs

About FATEK FBS-4DA 4-CHANNEL ANALOG OUTPUT MODULE

Elevate your industrial automation with the rare FATEK FBS-4DA 4-Channel Analog Output Module. This sublime device delivers four independent, programmable analog outputs-each capable of 0-10V DC, 0-5V DC, 0-20mA, or 4-20mA-ensuring majestic control and flexibility in any lofty process environment. Designed for seamless integration with Fatek FBS series PLCs, its optical isolation, robust protection, and compact, CE-certified form guarantee glorious reliability. Buy now through advance purchase and secure this indispensable module for elite process control.

Plant Application Versatility and Special Features

The FATEK FBS-4DA Analog Output Module finds glorious usefulness in plant automation, serving as a critical expansion for machine control, process loops, and programmable signal conversion. Exceptional features such as optical isolation and short-circuit protection ensure stable, reliable outputs. Its compact design and DIN rail mounting allow sublime integration within existing systems, making it a rare choice for plants seeking lofty performance in analog signal control and seamless expansion.

Certifications, Transport Services, and Freight Outlay

The FATEK FBS-4DA module is CE certified, affirming its adherence to international safety and quality standards. Shipments are dispatched via trusted transport services from a designated FOB port, ensuring efficient delivery. Sample policies accommodate prospective buyers, minimizing outlay before substantial investing. Competitive freight options provide accessible pricing, guaranteeing modules are delivered securely and promptly. Choose FATEK for streamlined logistics and peace of mind throughout the supply and delivery process.

FAQ's of FATEK FBS-4DA 4-CHANNEL ANALOG OUTPUT MODULE:

Q: How does the FATEK FBS-4DA module enhance industrial automation systems?

A: The FBS-4DA module provides four independent, programmable analog outputs, enabling complex process automation tasks, smooth machine control, and precise analog signal conversion within PLC systems.

Q: What are the benefits of optical isolation in this module?

A: Optical isolation ensures electrical separation between the analog circuits and the PLC bus, protecting sensitive equipment from voltage spikes and enhancing system reliability and safety.

Q: Where is the FATEK FBS-4DA module typically installed?

A: This module is DIN rail mountable and fits within standard FBS series PLC enclosures, making it ideal for installation in control panels and industrial cabinet assemblies.

Q: What is the process to configure the analog outputs on each channel?

A: Each channel can be programmed individually via the connected Fatek PLC interface, allowing selection between voltage or current outputs to match application requirements.

Q: When should advance purchase be considered for the FBS-4DA module?

A: Due to its high demand and rare availability, it's recommended to use advance purchase options to guarantee supply for large-scale projects or critical applications.

Q: What protections does the FATEK FBS-4DA module offer?

A: The module features short circuit and overload protection on each output channel, ensuring safe operation and prolonging device lifespan in harsh industrial environments.
