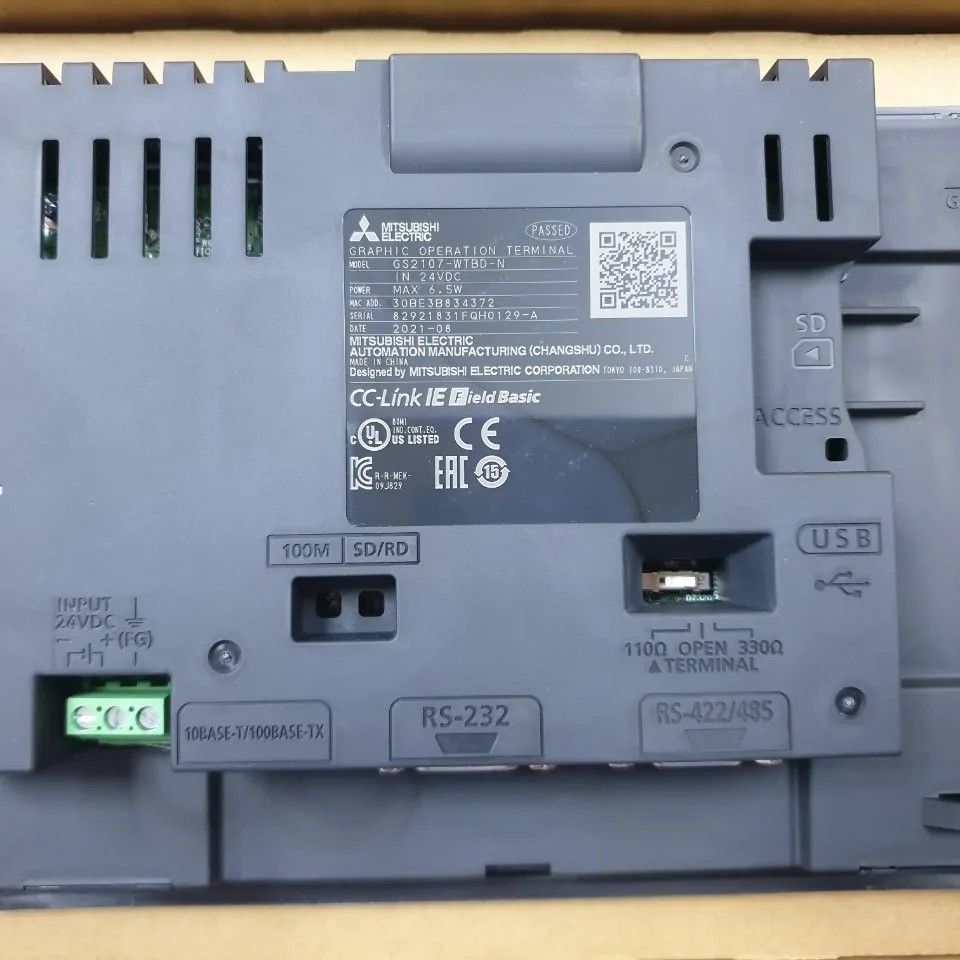

Mitsubishi HMI GS2107-WTBD-N

Name: Mitsubishi HMI GS2107-WTBD-N
Brand: VANSTECH MACHINES
Price: 13199.0 INR
Availability: InStock

Price 13199.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Mitsubishi HMI GS2107-WTBD-N Specification

Features
Multi-language support, LED backlight, Data Logging, Recipe Function

IP Rating
IP65 (front), IP20 (rear)

Processor Type
32-bit RISC Processor

Frequency
50/60 Hz

Control Type
Touch Screen

Connectivity Type
Ethernet, RS-422, RS-232, USB

Weight
Approx. 0.8 kg

Mounting Type
Panel Mounting

Automation Grade
Industrial Grade

Cable Length
Depends on application, not specified

Application
Industrial Automation, HMI for PLCs, Machine Control

Phase
Single Phase

Screen Size
7 inch (Wide) TFT LCD

Material
Plastic, Glass Front Panel

Power
5.5 W (max)

Temperature
Operating: 0 to 55C

Voltage
24 V DC

Touch Panel Type
Analog Resistive

Display Resolution
800 x 480 pixels (WVGA)

USB Ports
1 host, 1 device

Part Number
GS2107-WTBD-N

Product Model
GS2107-WTBD-N

Display Colors
65,536 Colors

Vibration Resistance
5 to 9 Hz, amplitude 3.5 mm; 9 to 150 Hz, acceleration 9.8m/s2

Compatible Software
GT Works3 / GT Designer3

Serial Ports
1 x RS-232, 1 x RS-422/485

Ethernet Port
10/100 Mbps

Backlight Life
50,000 hours (typical at 25C)

Storage Memory
12 MB (user memory)

Mitsubishi HMI GS2107-WTBD-N Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Seconds

About Mitsubishi HMI GS2107-WTBD-N

The GS2107-WTBD-N is a Mitsubishi Electric GS2107-WTBD-N 7-inch Human Machine Interface (HMI) from the GOT SIMPLE (GS21) series, designed for machine control and industrial automation applications. It is programmed using GT Designer3 (GT Works3) software and communicates with Mitsubishi PLCs as well as other controllers using standard industrial protocols.

Key Specifications

Display: 7-inch TFT color LCD
Resolution: 800 480 (WVGA)
Display Colors: 65,536
Touch Panel: Analog resistive
Power Supply: 24 VDC
Internal Memory: 15 MB Flash
Communication Ports:
- Ethernet (RJ-45)
- RS-232
- RS-422/RS-485
- USB Mini-B
- SD/SDHC card slot
Front Protection: IP65F (panel mounted)
Operating Temperature: 0C to 50C

Versatile Connectivity for Industrial Integration

The GS2107-WTBD-N HMI offers comprehensive connectivity, including Ethernet, RS-232, RS-422/485, and USB ports, allowing seamless integration with PLCs and various industrial devices. Its panel mounting and industrial-grade durability make it suitable for a wide range of automation applications, from machine control to process monitoring.

User-Friendly Touch Interface and Display

Equipped with a 7-inch WVGA (800 x 480 pixels) wide screen and 65,536 colors, the GS2107-WTBD-N delivers crisp, vivid graphical displays. The analog resistive touch screen ensures reliable operation in harsh industrial environments, supporting efficient user interaction and enhanced productivity.

Enhanced Reliability and Efficiency

This HMI boasts a robust hardware design, including a 50,000-hour LED backlight, vibration resistance, and an IP65-rated front panel for dust and water resistance. Its 32-bit RISC processor ensures fast response, while functions like data logging and recipe management streamline operations.

FAQ's of Mitsubishi HMI GS2107-WTBD-N:

Q: How can I connect the Mitsubishi GS2107-WTBD-N HMI to a PLC system?

A: The GS2107-WTBD-N supports a variety of connectivity options, including RS-232, RS-422/485 serial ports, Ethernet, and USB, allowing you to interface it with different PLCs and industrial controllers. Panel mounting ensures stable installation for machine automation.

Q: What software is compatible with the GS2107-WTBD-N for designing HMI screens?

A: Mitsubishi's GT Works3 and GT Designer3 are the recommended software platforms for developing, configuring, and downloading screen projects to the GS2107-WTBD-N. These tools facilitate interface customization and advanced feature implementation.

Q: When is it ideal to use this HMI model in industrial environments?

A: The GS2107-WTBD-N is well-suited for continuous industrial automation operations, particularly when you require durable, user-friendly HMIs for machine control, process monitoring, or operator interfaces in environments with high vibration or demanding operational conditions.

Q: Where should the GS2107-WTBD-N be installed for optimal performance?

A: This HMI is designed for panel mounting in industrial control cabinets. Ensure the front panel is outward-facing for operator access, taking advantage of its IP65 rating for protection against dust and water in harsh environments.

Q: What are the usage benefits of the GS2107-WTBD-N's analog resistive touch panel?

A: The analog resistive touch screen provides responsive and precise input, even with gloved hands, making it ideal for industrial settings where ease of use and operational reliability are critical.

Q: How does the GS2107-WTBD-N maintain data integrity and process efficiency?

A: With built-in features like data logging and recipe management, the HMI facilitates accurate record-keeping and process repeatability, supporting traceability and streamlined production workflows.

Q: Why choose the GS2107-WTBD-N for industrial machine control applications?

A: Its robust hardware, multi-language support, extensive connectivity, and user-friendly interface make it a versatile and reliable choice for diverse industrial automation scenarios, maximizing uptime and operational efficiency.
